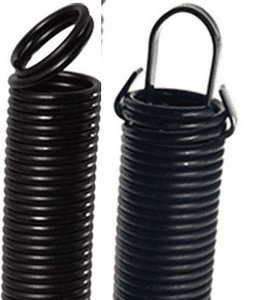

| HOW TO ORDER EXTENSION SPRINGS
|
Determine the door weight
and door height:
1. The pull weight of an extension spring is determined by the color code found
on the end of the spring. (Refer to Color Code Chart below.)
2. Measure door the height.The Standard height for most residential doors is either 6 ft. 6 inches high or 7 ft high. If your door
is over 7 ft. high, call for pricing.
3.Springs are only sold in pairs. Please see the chart below for pricing. If you cannot determine the color code, it will be necessary to weigh the
door.
How to weigh the door:
1. Raise the door to the full position and secure. The best way to secure the door
in the up position is to snap a vice grip or C clamp under both the bottom rollers.
2. Remove the springs from the door.
3. For a one car opening, lower the door onto one bathroom scale in the center
of the door and read the weight.
For a double door (16 ft. wide or larger) use two bathroom scales. Locate the
scales two feet in from each side. Take the weight of both scales and add together
for door weight.
4. Measure door height. Standard height is 6 ft. 6 inches, or 7 ft. If your door
is over 7 ft. high, call for pricing.please double check all spring information.A no return policy is in effect on extension springs,all sales are final.NOTE: THE COLOR CODES BELOW ARE THE OFFICIAL DASMA CODES USED BY MOST ORIGINAL MANUFACTURES DATING BACK TO 1990.
| DOOR
WEIGHT |
COLOR
CODE |
PRICE
PER PAIR |
ORDER
SPRING SET |
| 60LBS |
BROWN |
$29.00 |
|
| 70LBS |
ORANGE
|
$30.00 |
|
| 80LBS |
GOLD |
$31.00 |
|
| 90LBS |
LT
BLUE |
$35.00 |
|
| 100LBS |
TAN |
$36.00 |
|
| 110LBS |
WHITE |
$37.00 |
|
| 120LBS |
GREEN |
$38.00 |
|
| 130LBS |
YELLOW |
$39.00 |
|
| 140LBS |
BLUE |
$40.00 |
|
| 150LBS |
RED |
$41.00 |
|
| 160LBS |
BROWN |
$42.00 |
|
| 170LBS |
ORANGE |
$44.00 |
|
| 180LBS |
GOLD |
$46.00 |
|
| 190LBS |
LT
BLUE |
$48.00 |
|
| 200LBS |
TAN |
$55.00 |
|
| 210LBS |
WHITE |
$59.00 |
|
| 220LBS |
GREEN |
$60.00 |
|
| 230LBS |
YELLOW |
$65.00 |
|
| 240LBS |
BLUE |
$69.00 |
|
| 250LBS |
RED |
$75.00 |
|
| 260LBS |
BROWN |
$80.00 |
|
| 270LBS |
ORANGE |
$85.00 |
|
| 280LBS |
GOLD |
$86.00 |
|
| 290LBS |
LT
BLUE |
$89.00 |
|
| 300LBS |
TAN |
$95.00 |
|
NOTE: PLEASE ADHERE TO ALL SAFETY PRECAUTIONS.
For Technical Support or To Order By Phone Please Call 800-829-6002 Monday thru Friday 9:00 AM to 5:00 PM
|
